Ronstan Series 40 Ball Bearing Block, Fiddle, Cleat (RF40520)

Ronstan Series 40 Ball Bearing Block, Fiddle, Cleat

Ronstan
SKU:
RF40520
|
UPC:
9316800244188
$103.91
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

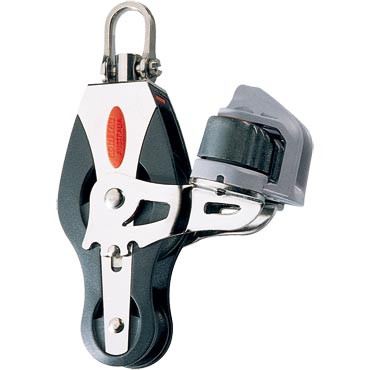

RF40520: SERIES 40 BALL BEARING BLOCK, FIDDLE WITH CAM CLEAT
Fiddle block with cam cleat and adjustable cam arms to set desired cleating angle

FEATURES

  • Low friction acetal bearing system.
  • Lightweight.
  • Cheek cut-outs for easy bearing maintenance.
  • Captive Lock™ universal head.
  • Slotted pin shackle eliminates fouled lines.
  • Multi-position cleat arm.

SPECIFICATIONS

  • B.L. (kg) 1000
  • M.W.L. (kg) 350
  • Max. Rope diameter (mm) 8
  • Weight (g) 156
  • Pin Ø (mm) 5
  • Notes: Line load through cleat not to exceed 125kg (275lb)

APPLICATIONS

  • Mainsheet, halyard, vang and spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (16ft).

MATERIALS

  • Acetal ball bearings.
  • UV stabilised Acetal sheave.
  • Grade 316 stainless steel load strap and head fitting.
  • Impact and UV resistant, fibre reinforced Nylon cheeks.
