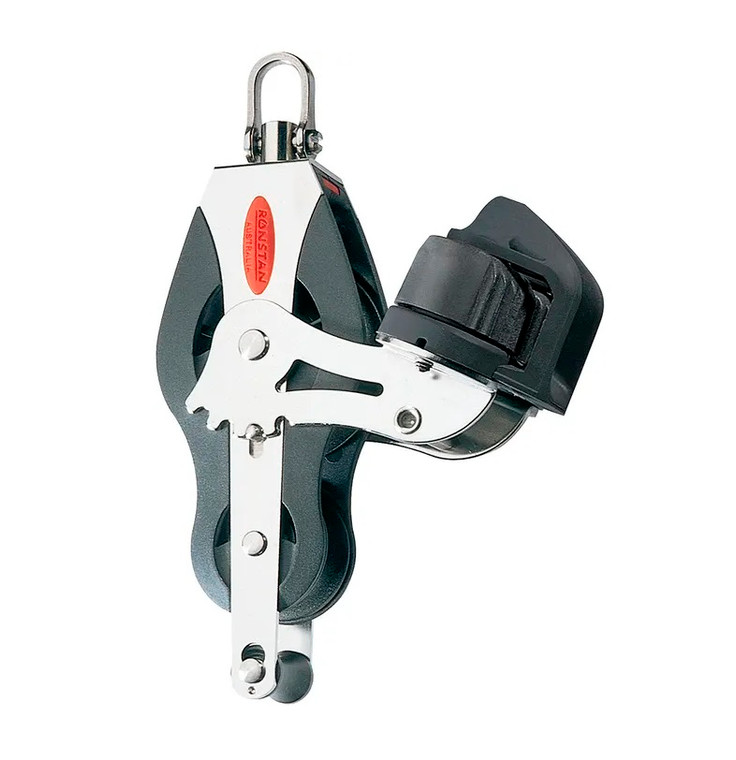

Ronstan Series 50 Ball Bearing Block, Fiddle, Becket Cleat (RF50530)

Ronstan Series 50 Ball Bearing Block, Fiddle, Becket Cleat

Ronstan
SKU:
RF50530
|
UPC:
9316800241385
$172.22
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF50530: SERIES 50 BALL BEARING BLOCK, FIDDLE WITH BECKET & CAM CLEAT
Fiddle, becket, adjustable cleat, universal head

FEATURES

  • Low friction, 2-stage ball bearing system
  • High static and dynamic load capacity
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Captive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines
  • Snap fit removable becket pin
  • Multi-position cleat arm

SPECIFICATIONS

  • B.L. (kg) 1500
  • M.W.L. (kg) 500
  • Max. Rope diameter (mm) 10
  • Weight (g) 334
  • Pin Ø (mm) 5
  • Notes: Line load through cleat not to exceed 175kg (385lb)
  • A (mm) 29.3
  • B (mm) 31.8
  • C Max. (mm) 752.0
  • C Min. (mm) 622.0
  • D (mm) 59.2
  • E (mm) 25.2

PRODUCT INFORMATION

  • Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction.
  • The 2-stage ball bearing system provides consistent performance over the full load range.
  • Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
  • Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting,

APPLICATIONS

  • Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs.
  • On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls.

MATERIALS

  • Acetal ball bearings
  • UV stabilised Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fibre reinforced Nylon cheeks
