Harken Medium Square Duplex Padeye
Harken
$175.37
(No reviews yet)
Write a Review
Harken

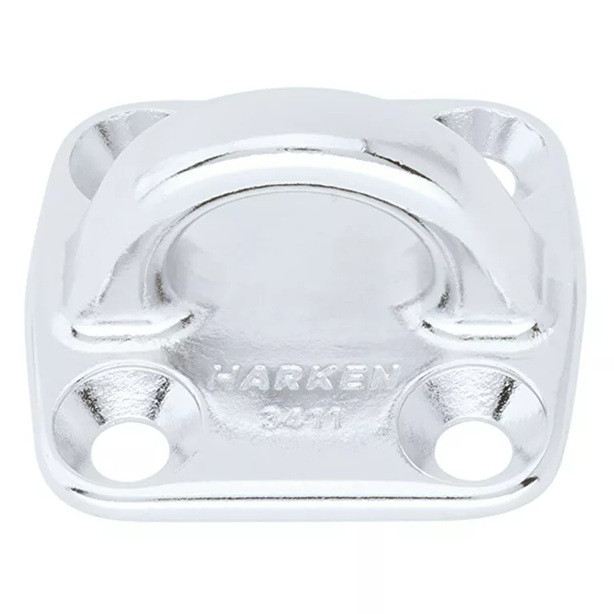

Harken Medium Square Duplex Padeye
This is a Special Order item. Please contact sales@adventuresafety.com.au for stock availability and delivery lead time.
Not all sailors know this: there are different grades of stainless steel and they offer different takes on the balance between structural strength and corrosion resistance. Duplex is a class of stainless steel, new to Harken’s pad-eye line-up. It offers increased amounts of chromium in the alloy for enhanced corrosion resistance at very high relative strengths. All sailors should know this: Stainless does not mean maintenance free. Make sure to inspect structural stainless deck hardware regularly and clean and restore the finish as needed.
Part no. 3411: Medium Square Duplex Padeye
- Weight (g) 218 g
- Weight (oz) 7.7 oz
- Maximum working load (kg) 3402 kg
- Maximum working load (lb) 7500 lb
- Breaking load (kg) 6804 kg
- Breaking load (lb) 15000 lb
- A (mm) 65 mm
- A (in) 2 9/16 in
- B (mm) 61 mm
- B (in) 2 3/8 in
- C (mm) 39 mm
- C (in) 1 9/16 in
- D (mm) 39 mm
- D (in) 1 9/16 in
- E (mm) 38 mm
- E (in) 1 1/2 in
- F (mm) 21 mm
- F (in) 13/16 in
- G (mm) 28 mm
- G (in) 1 1/8 in
