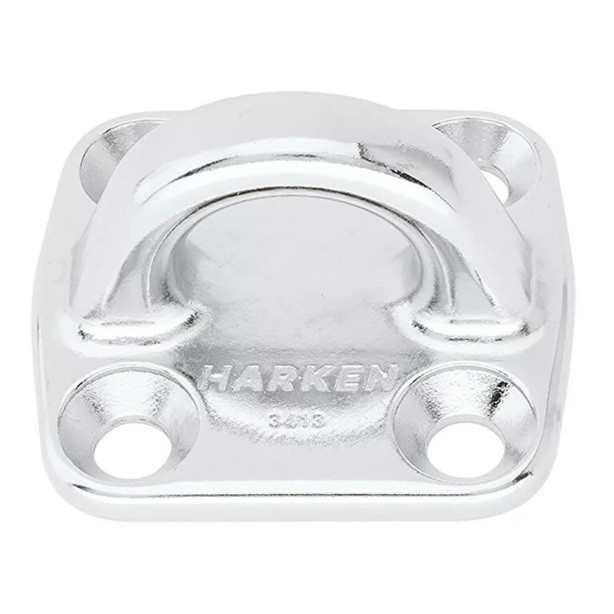

Harken Large Square Duplex Padeye
Harken
$437.44
(No reviews yet)
Write a Review
Harken
Harken Large Square Duplex Padeye
This is a Special Order item. Please contact sales@adventuresafety.com.au for stock availability and delivery lead time.
Not all sailors know this: there are different grades of stainless steel and they offer different takes on the balance between structural strength and corrosion resistance. Duplex is a class of stainless steel, new to Harken’s pad-eye line-up. It offers increased amounts of chromium in the alloy for enhanced corrosion resistance at very high relative strengths. All sailors should know this: Stainless does not mean maintenance free. Make sure to inspect structural stainless deck hardware regularly and clean and restore the finish as needed.
Part no. 3413: Large Square Duplex Padeye
- Weight (g) 790 g
- Weight (oz) 27.9 oz
- Maximum working load (kg) 8165 kg
- Maximum working load (lb) 18000 lb
- Breaking load (kg) 16329 kg
- Breaking load (lb) 36000 lb
- A (mm) 97 mm
- A (in) 3 13/16 in
- B (mm) 58 mm
- B (in) 3 1/2 in
- C (mm) 58 mm
- C (in) 2 1/4 in
- D (mm) 58 mm
- D (in) 2 1/4 in
- E (mm) 58 mm
- E (in) 2 1/4 in
- F (mm) 30 mm
- F (in) 1 3/16 in
- G (mm) 40 mm
- G (in) 1 9/16 in
