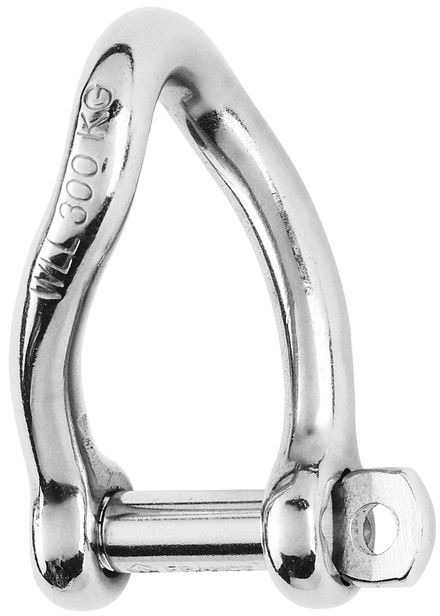

Wichard Self-locking Twisted Shackles (1222-1225)

Wichard Self-locking Twisted Shackles (packs)

Wichard
SKU:
1222-1225
|
UPC:
3587790012224
$49.12 - $61.37
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Wichard self-locking twisted shackles

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads

Applications

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Materials

  • 316 stainless steel grade

Specifications

Part # Weight Working Load Breaking Strength Inside Length Inside Width Pin Diameter
kg lbs kg lbs kg in mm in mm in mm
1222 0.016 1058 480 2425 1100 1.02 26 0.39 10 0.20 5
1223 0.027 1323 600 3307 1500 1.18 30 0.47 12 0.24 6
1224 0.067 2205 1000 6614 3000 1.57 40 0.63 16 0.31 8
1225 0.127 3175 1440 7937 3600 1.97 50 0.79 20 0.39 10
