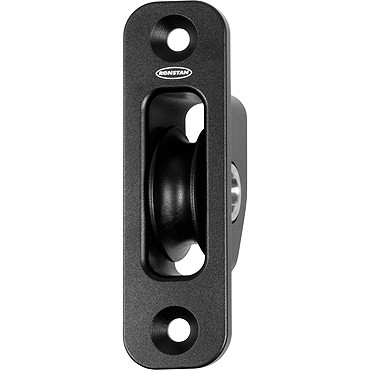

Ronstan Series 40 Ball Bearing Exit Block (RF45711)

Ronstan Series 40 Ball Bearing Exit Block

Ronstan
SKU:
RF45711
|
UPC:
9316800645114
$159.30
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF45711: SERIES 40 BALL BEARING EXIT BLOCK
40mm Acetal Sheave, Anodised Aluminium Housing, Requires 2x 6mm (1/4") Fasteners

SPECIFICATIONS

  • B.L. (kg) 2000
  • M.W.L. (kg) 800
  • Max. Rope diameter (mm) 10
  • Weight (g) 77
  • Fastener Ø (mm) 6
  • Qty. Fasteners 2
  • Notes: MWL = 400kg dynamic load, 800kg static load.
  • A (mm) 58
  • B (mm) 22
  • C (mm) 30
  • D (mm) 83

PRODUCT INFORMATION

  • Exit Blocks minimise friction in lines passing through the deck or exiting masts and booms.
  • The RF45711 exit block incorporates our 2-stage bearing system using ball bearings to minimise friction and a secondary full-contact bearing to maintain low friction across the full working load range.

MATERIALS

  • Sheave and ball bearings: High compression strength acetal.
  • Housing: Anodised aluminium.
