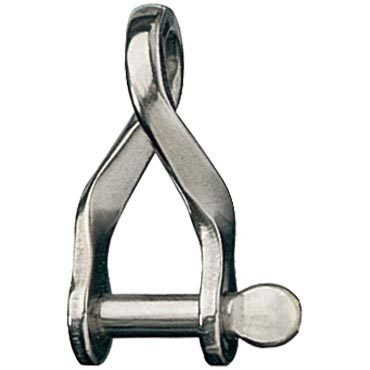

Ronstan Twisted Shackles
| TWISTED SHACKLES | ||||||||
| Product No. | Description | A (mm) | B (mm) | C (mm) | PL/BL (kg) | UDL/BL (kg) | Shackle Pin | Weight (g) |
| RF627 | Twisted Shackle, 5/32" Pin, Coined Head | 4.0 | 23 | 9 | 600 | 800 | 5 | |
| RF628 | Twisted Shackle, 3/16" Pin, Coined Head | 4.8 | 28 | 10 | 800 | 1200 | RF32 | 15 |
| RF629 | Twisted Shackle, 1/4" Pin, Coined Head | 6.4 | 39 | 13 | 1400 | 2300 | RF33 | 30 |
| RF630 | Twisted Shackle, 5/16" Pin, Coined Head | 7.9 | 48 | 16 | 2700 | 3600 | RF34 | 65 |
| RF631 | Twisted Shackle, 3/8" Pin, Coined Head with Hole | 9.5 | 54 | 19 | 3600 | 5400 | RF35 | 90 |
| RF632 | Twisted Shackle, 1/2" Pin, Coined Head with Hole | 12.7 | 65 | 19 | 7500 | 7700 | RF36 | 165 |
FEATURES
- High strength to weight ratio
MATERIALS
- Grade 316 stainless steel bodies and pins
NOTES
- UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
- RF631/RF632: Shackle pins drilled for seizing wire.
