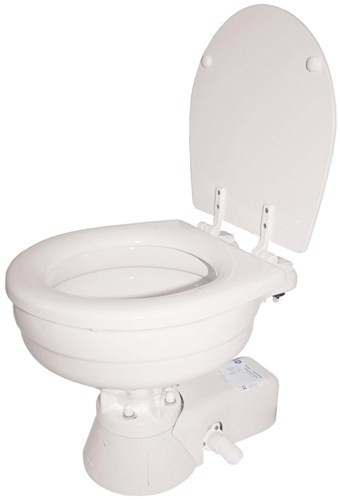

RWB Jabsco Quiet Flush Electric Toilet - Salt Water Flush 12v/24v

Jabsco Quiet Flush Electric Toilet - Salt Water Flush 12v/24v

Quiet Flush marine toilets are an innovation from Jabsco to improve the performance, comfort and appearance of electric marine toilets and make life on-board more comfortable.  It works the same way and includes the same features as the premium electric Jabsco toilets with some important additional features.

FEATURES

• Quiet Flush marine toilets electric toilet systems utilise an electric Par-Max 4 diaphragm pump to reduce the noise level of the flush pump to make life on board more comfortable
• Powerful macerator discharge pump breaks up waste and evacuates the toilet and its modern three-way control panel lets you select a normal flush, drain cycle or adjust the water level.
• Includes a 3-way control panel that allows you to select a normal flush and drain cycle or to raise or lower the water level.
• Includes 2 meters of white hose to connecto either the solenoid valve or the salt water intake pump.
• All toilets has connections for 20mm (3/4") intake hose and 25mm (1") and 38mm (1 1/2") outlet hose.
• Includes hygenic vitreous china marine toilet bowl in either standard or large size giving additional comfort.
• Includes contoured base, motor cover, fastening covers and stylish white enameled wood seat & lid for easy cleaning and sleek appearance.

SPECIFICATIONS

• Connections: - for 19mm ( ¾”) bore inlet hose, 25mm (1“) bore discharge hose
• Compact bowl dimensions (mm) - 350  x 350  x 450
• Large bowl dimensions (mm) - 370  x 370 x 500
• Fuse size - 25A @ 12v | 15A @ 24v
• Low-noise waste discharge pump
• Use any remote-mounted automatic pressurised water pump for flushing.
• Pump must deliver at least 13.5 litres/minute.
• Includes solenoid valve to control flushing pump, 1.8m of hose, siphon breaker assembly
• Three-way control panel
• Packaged dimensions: L:44.00 x H:42.00 x W:56.00cm
• Actual weight: 15.00 Kg (Approx. 17.00 Kg packed)

PART NUMBERS
