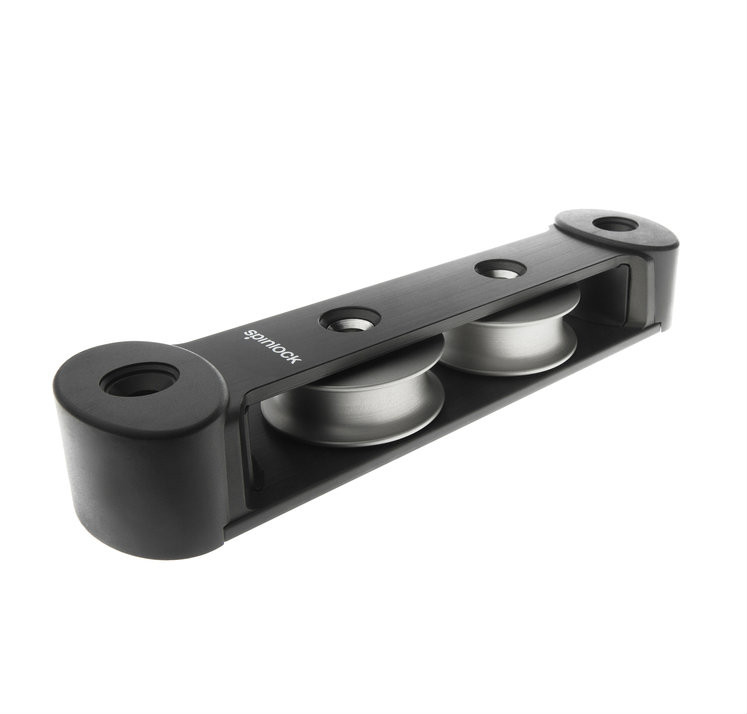

Spinlock 50mm, 2 Sheave Symmetric/ Asymmetric High Load Deck Organiser

Spinlock
$312.14
Current Stock:
SKU:
SPTC50/2-2Y
Shipping:
Calculated at Checkout

T-Series organisers lead multiple lines back from the mast to banks of power clutches.

  • TC50 organisers are specially developed for higher loads
  • Minimal overall length
  • Efficient bearings surface reduces winch effort and increases halyard life
  • Integral end fairings for safe side loading
  • Can be used as an Aft Organiser to divert lines from a clutch to a winch

Part Numbers:

  • TC50/2: 50mm, 2 Sheave Symmetric High Load Deck Organiser
  • TC50/2Y: 50mm, 2 Sheave Asymmetric High Load Deck Organiser

Specifications:

  • Sheave Diameter/Type: 50mm (2") alloy
  • SWL per sheave: 1500kg (3300lbs)
  • Total SWL per unit: Number of sheaves x 750kg (1650lbs)
  • Line Diameter: Up to 14mm (9/16")
  • Weight: 575g (20.1oz) for a 2 sheave organiser
  • Fasteners: M8 (5/16") CSK Supplied
