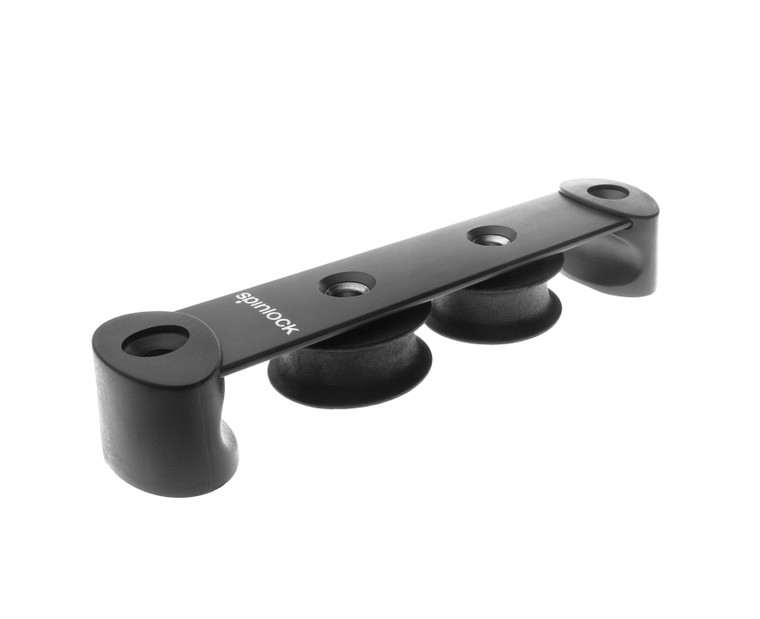

Spinlock 38mm, 2 Sheave Deck Organiser - Standard/Asymmetric

Spinlock
$56.61
Current Stock:
SKU:
SPT38/2
Shipping:
Calculated at Checkout

Type required

T-Series organisers lead multiple lines back from the mast to banks of power clutches.

  • Minimal overall length
  • Efficient bearings surface reduces winch effort and increases halyard life
  • Integral end fairings for safe side loading
  • Asymmetric version reduces deck footprint and saves weight
  • Can ‘stack’ for limited deck area or adding extra capacity.
  • Vari-camber feature: Designed to follow the curve of the deck when fitted
  • 50mm sheave versions, T50, available

Available options:

  • Standard (T38/2)
  • Asymmetric (T38/2Y) - asymmetric design with only one plastic end fitting

Part Number: T38/2, T38/2Y

Specifications:

  • Sheave Diameter/Type: 38mm (1 1/2") composite
  • SWL per sheave: 600kg (1320lbs)
  • Total SWL per unit: No of sheaves x 300kg (660lbs)
  • Line Diameter: Up to 12mm (1/2")

Weights:

  • 115g (4.0oz) for 2 sheave organiser
  • 30g (1.1oz) per extra sheave

Fasteners

  • 2 x M6 (1/4") CSK (not supplied)
