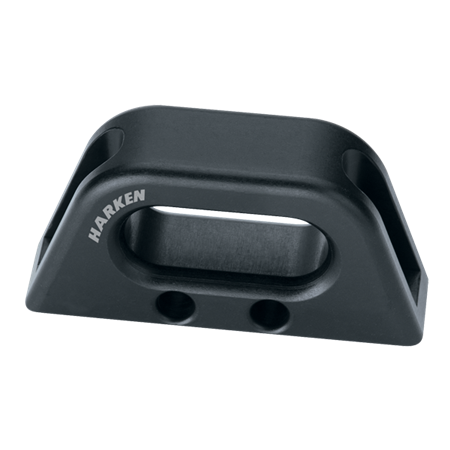

Harken Small Jib Fairlead

Current Stock:
Calculated at Checkout

Strong aluminum jib leads deflect jib sheets to winches, preventing overrides. These jib leads have two small drilled holes through which a loop can be spliced to attach the hobble. This temporarily secures the jib/genoa clew to free-up a winch for mark roundings.


Length (mm)75 mm
Length (in)2 15/16 in
Width (mm)22 mm
Width (in)7/8 in
Height (mm)37 mm
Height (in)1 7/16 in
Maximum line Ø (mm)12 mm
Maximum line Ø (in)1/2 in
Weight (g)84 g
Weight (oz)2.97 oz
Fasteners (mm)6 CH, 6 HH, 6 SH mm
Fasteners (in)1/4 SH in
Fastener spacing (mm)55 mm
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb


Harken Manual: Bolt-Down Fairleads

Need help to design your Harken system - take a look here for the Harken System Guides and Drawings

Or perhaps you need some other information (load calculators, block selectors, service instructions or manuals)?   Take a look here for all the official Harken Support Information
