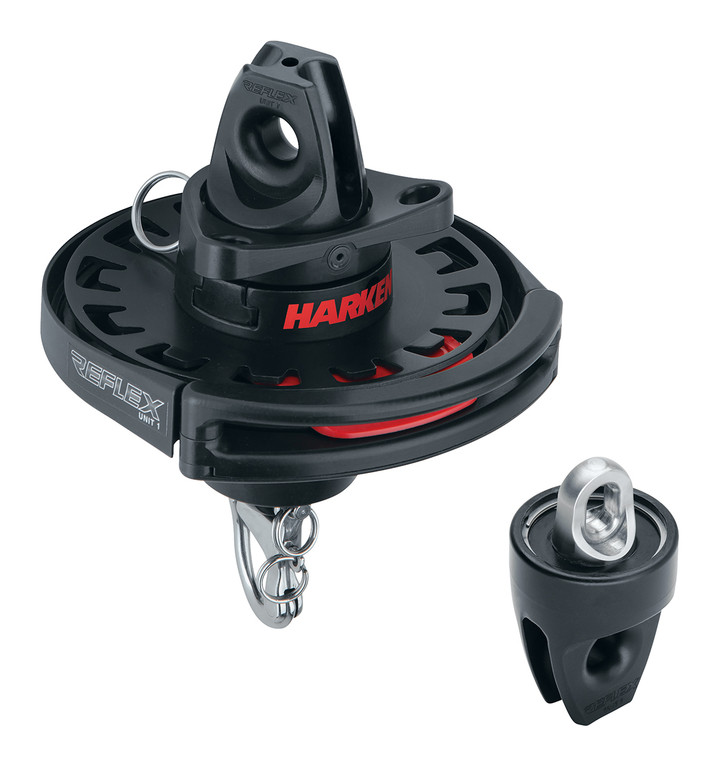

Harken Reflex Top Down Unit 1 Furling System

Harken
$3,750.36
Current Stock:
SKU:
HK7351.10.20M
Shipping:
Calculated at Checkout

The Harken Reflex furling system is a game changer! The previous generation of free-flying sail furlers often resulted in partial or uneven furling. Patent-pending Harken Reflex furlers provide sailors confidence that their free-flying spinnakers and gennakers will furl with speed and control. The result? Sailors use downwind sails more often—even when sailing shorthanded. The compact drive unit is easier to handle than other designs. Pull the furling line and the drive unit reacts reflexively to rotate the torsion cable, immediately transferring torque to the head swivel without unwanted corkscrewing delaying the response. The head swivel reacts instantly, spinning the sail smoothly and completely from top to bottom for an even roll-up and super-tight wrap. The furled spinnaker lowers easily to the deck, ready for the next hoist.

The Reflex cable is more torsionally resistant to corkscrewing than the current textile cables. Braided stainless steel wire filaments over braided polyester core transmit torque to head swivel through both tension and compression for faster furling (textile cable transmits through tension only).

The quick-release modular T-fitting allows a single drive unit to handle multiple sails.

Specifications

Sail type Asymmetric spinnaker
Maximum sail area (m²) 112 m²
Maximum sail area (ft²) 1200 ft²
Cable length (m) 20.12 m
Cable length (ft) 66 ft
Line Ø (mm) 6 mm
Line Ø (in) 1/4 in
Maximum working load (kg) 1500 kg
Maximum working load (lb) 3300 lb
Includes Drive unit, head swivel, Reflex tack swivel terminal, snap shackle threaded adapter, Reflex torsion cable, and clamps
