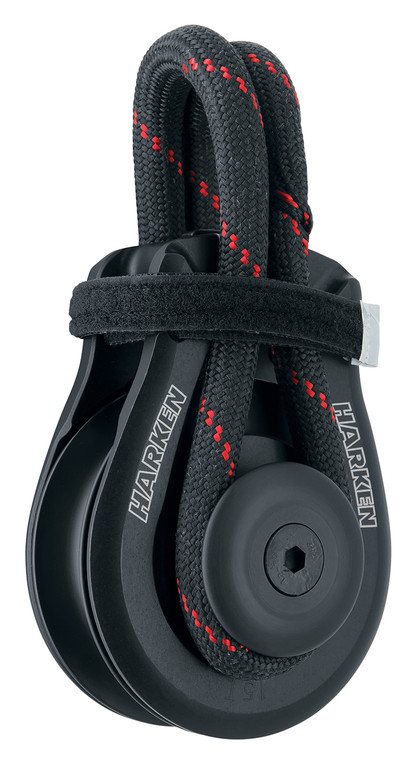

Harken 15T HL Snatch Block

Harken
$3,843.90
Current Stock:
SKU:
HK3303
Shipping:
Calculated at Checkout

These multi purpose blocks are a must on racing yachts of all sizes. Opening sideplates make them easy to deploy, allowing crew to quickly fasten them wherever needed—perfect for temporary leads, line deflection, and static line functions requiring small adjustments. A strop soft-attach is fixed on one side, but is easily removable on the other. The strop carries the block’s primary load and articulates for a fair lead. The Velcro® strap is permanently attached to one sideplate and holds the block securely closed when sideplates are aligned—even under the highest loads. The strap has a broad reflective tab for easier operation with gloves.

Harken composite bearing technology (ULC) ensures sheaves turn smoothly and maintain efficiency under extreme loading. Snap-fit Torlon® bearings carry sideloads. An integral headspacer prevents Hard Lube-anodized aluminum sideplates from deflecting and binding. The wide sheave allows a range of line diameters.

Specifications

Sheave Ø (mm) 125 mm
Sheave Ø (in) 4.9 in
Length (mm) 175 mm
Length (in) 6.9 in
Weight (g) 1654 g
Weight (oz) 58.34 oz
Maximum line Ø (mm) 30 mm
Maximum line Ø (in) 1 3/16 in
Maximum working load (kg) 15000 kg
Maximum working load (lb) 33060 lb
Breaking load (kg) 30000 kg
Breaking load (lb) 66120 lb
