Harken Hi-Load Smallboat Furling System (previously 164 & 165)

Harken
$586.65
Current Stock:
SKU:
HK435
Shipping:
Calculated at Checkout

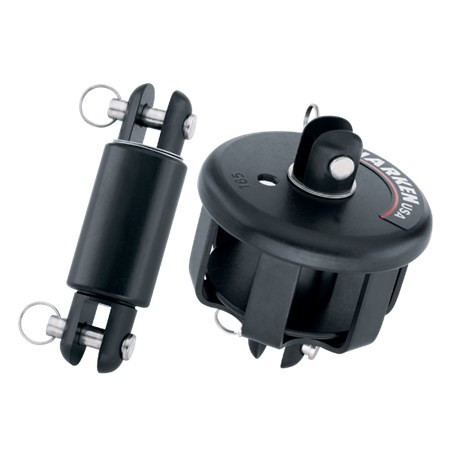

Includes: Drum and Swivel.

Harken® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. The drums and halyard swivels of these furling systems feature multiple stacked races of Delrin® or Torlon® bearings to ensure smooth rotation under load. All Small Boat furling systems require a jib with a luff wire properly seized to the sail. Small boat units are not suitable for reefing.

Use for: Dinghies to 20 ft (6.1 m), Catamarans to 18 ft (5.5 m).

Part Number: 435

Specifications

  Imperial Metric
Pin-to-Pin Length 2 1/2" 64 mm
Drum Dia. 2 7/8" 73 mm
Line Dia. 5/32" 4 mm
Jaw Width 5/16" 8 mm
Max Luff Wire Dia. 1/8" 3 mm
Clevis Pin Dia. 1/4" 6 mm
Weight 7.6 oz. 215 gr
Maximum Working Load 950 lbs 431 kg

Harken Furling



Need help to design your Harken system - take a look here for the Harken System Guides and Drawings


Or perhaps you need some other information (load calculators, block selectors, service instructions or manuals)?   Take a look here for all the official Harken Support Information
