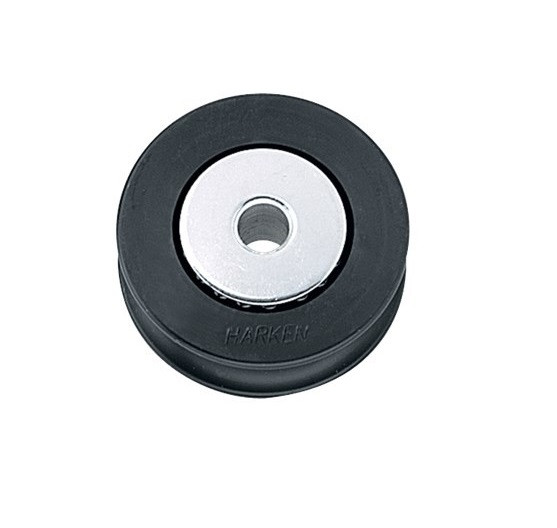

Harken 2.25 Deck Sheave

Harken
$234.48
Current Stock:
SKU:
HK727
Shipping:
Calculated at Checkout

Harken high-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a Teflon® composite bushing to carry radial loads. While not as free-rolling as the standard Harken® ball/roller bearing system, this compact bearing system is extremely durable and perfect for carrying high loads in a restricted diameter.

Installation requires clamping or securing inner race.

Use for: Masts, Booms, Deck organisers and Through-the-transom running backstays.

Part Number: 727

Specifications

Sheave Ø (mm):  114 mm
Width (mm):  41 mm
Weight (g):  709 g
Center pin Ø (mm):  19.1 mm
Fasteners (mm):  10 mm
Maximum line Ø (mm):  18 mm
Maximum working load (kg):  6736 kg
Breaking load (kg):  13472 kg



Need help to design your Harken system - take a look here for the Harken System Guides and Drawings

Or perhaps you need some other information (load calculators, block selectors, service instructions or manuals)?   Take a look here for all the official Harken Support Information
