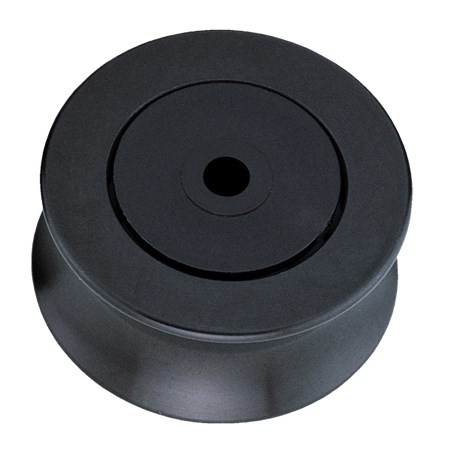

Harken 2.00 Midrange Self Contained Sheave (Delrin)

Harken
$24.01
Current Stock:
SKU:
HK1533
Shipping:
Calculated at Checkout

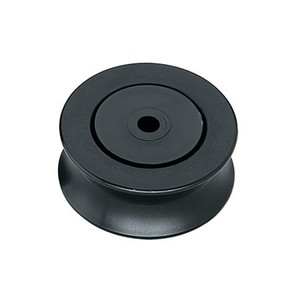

Harken self-contained sheaves are designed for sailors to use in custom applications. The Micro, Bullet and Big Bullet sheaves are Delrin® with Delrin® ball bearings. They are scored for rope. 16 mm AirBlock® sheaves are Delrin® and feature stainless ball bearings that ride in a grooved race. Midrange sheaves come in either Delrin® or aluminum for wire.

Wire sheaves ride on high-load composite bearings. They are Hardkote-anodized aluminum with Teflon® impregnation. Ball bearings in the 11/2 in (38 mm) and 2 in (51 mm) sheaves minimize friction. The 1 in (25 mm) wire sheave uses low-friction washers for this purpose.

Use Cruising ESP sheaves to handle high static loads from halyards and reef lines. Sheaves are carbon-black Delrin® for UV protection and turn on stainless steel spacers. Contained sideload ball bearings allow sheaves to spin freely when loads are released. Sheaves require a sideplate for the sideload balls to roll on.

Use for: Custom applications.

Part Number: 1533

Specifications

Sheave Ø (mm):  51 mm
Width (mm):  22 mm
Weight (g):  43 g
Center pin Ø (mm):  6.27 mm
Maximum line Ø (mm):  16 mm
Maximum working load (kg):  227 kg



Need help to design your Harken system - take a look here for the Harken System Guides and Drawings

Or perhaps you need some other information (load calculators, block selectors, service instructions or manuals)?   Take a look here for all the official Harken Support Information
