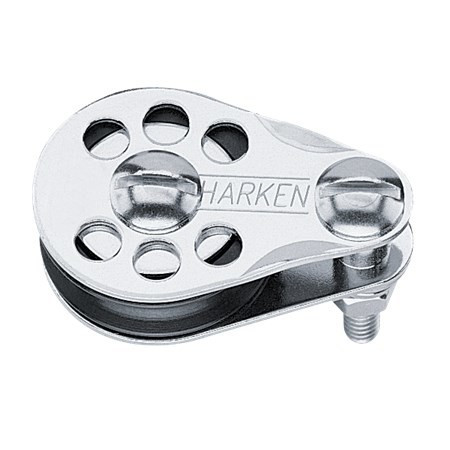

Harken 1.00 Wire Cheek Block w/Fasteners

Harken
$60.72
Current Stock:
SKU:
HK301
Shipping:
Calculated at Checkout

Lightweight, low-friction Harken wire blocks carry wire halyards and high-strength control lines on boats of all sizes. High-load composite bearings carry axial loads. Hardkote-anodized Teflon® impregnated sheave for strength and corrosion resistance. 25 mm (1.00 in) wire blocks use low-friction thrust washers. 38 mm (1.50 in) and 51 mm (2.00 in) wire blocks feature sideload balls between the sheave and the sideplate to minimize friction from unfair leads.

Use for: Wire halyards, Vangs and Control lines.

Part Number: 301

Specifications

  Imperial Metric
Sheave Dia. 1" 25 mm
Weight 1.25 oz 35 gr
Max Wire Dia. 3/32" 2 mm
Max Line Dia. 5/32" 4 mm
Maximum Working Load 1000 lbs 454 kg
Breaking Load 2000 lbs 907 kg
RH Fasteners #10 5 mm
