Compact in design integrating motor, gears and power controls into one unit
Impressive line speed and first rate maximum load
Easy to install and compatible with the ANDERSEN Modular Power System™.
Available in two versions: Above and Below deck
Winch mounted directly on the motor
Motor built without carbon brushes eliminates wear and tear.
30-50% less power consumption compared to conventional electric motors
Available in Full Stainless or Non Stainless versions

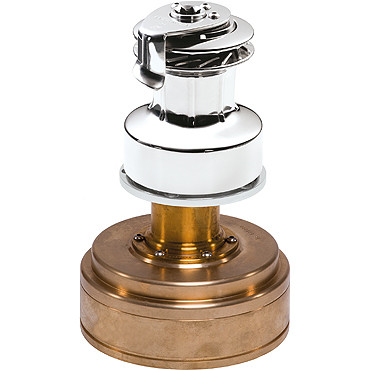

Part numbers: RA2034014100 (12V)/ RA2034014200 (24V)
Drum Ø D: 70 mm
Base Ø B: 125 mm
Height H: 157 mm
Line Entry L: 73 mm
Line Size: 8-14 mm
Weight: 17 kg
Max Deck K: 54 mm
Motor Depth J: 180 mm
Motor Ø S: 195 mm
Choosing the right equipment is an important job. It requires more than just adding a motor. Careful consideration should be given to all factors that have an impact on your sailing experience: boat size, sailing conditions, crew and convenience. Often, the choice is more complex than just the size of the motor. The source of power is also important. Hydraulic or electric — or manual for starters, and then growing with the challenge — the choice is yours.
The latest addition to our range of uncompromising electrical winches is the ANDERSEN Variable-speed COMPACT Motor™. ANDERSEN Variable-speed COMPACT Motor™ is especially developed for use as a winch motor. It is available in two versions; Below Deck, with smaller, built-in dimensions than a standard motor and Above Deck, featuring the winch mounted directly on the motor. This motor is highly efficient, with an impressive line speed and first-rate maximum load. The unit is extremely easy to install and is of course compatible with the ANDERSEN Modular Power System™.
This motor demonstrates why ANDERSEN Products™ are in a class of their own. When we say COMPACT, we mean COMPACT – We developed the motor with the size and shape of a winch in mind and then integrated the motor, gears and power control to make one COMPACT unit. That means no extra control boxes, all cables are connected directly to the unit. The motor is built on an entirely new commutator principle using no carbon brushes, resulting in the virtual elimination of wear and tear. This new approach to motors also provides other advantages; including 30-50% less power consumption compared to a conventional electric motor.
